SPECIFICATIONS

Model	LT 63T/1200	LT 80T/2500	LT-100T/3200	LT-100T/4000	LT-200T/3200	LT-200T/4000
Bending Force	630 kN	800 kN	1000kN	1000kN	2000kN	2000kN
Bending Length	1200 mm	2500 mm	3200 mm	4000 mm	3200 mm	4000 mm
Clear Press	600 mm	1900mm	2700mm	3500mm	2700mm	3500mm
Open Daylight	250 mm	320 mm	400 mm	400 mm	400 mm	400 mm
Ram Stroke	100 mm	100 mm	200 mm	200 mm	200 mm	200 mm
Y axis Speed	90 mm/sec	110 mm/sec	180 mm/sec	180 mm/sec	180 mm/sec	180 mm/sec
X axis Distance(BAck Gauage)	500 mm	500 mm	500 mm	500 mm	500 mm	500 mm
Throat Depth	250 mm	320 mm	400 mm	400 mm	400 mm	400 mm
Main Motor	5.5 KW	5.5 KW	7.5 KW	11 KW	11-15 KW	18.5 KW
Weight	4000 Kgs	4300 kgs	8500 kgs	10,000 Kgs	12,000 Kgs	17000kgs

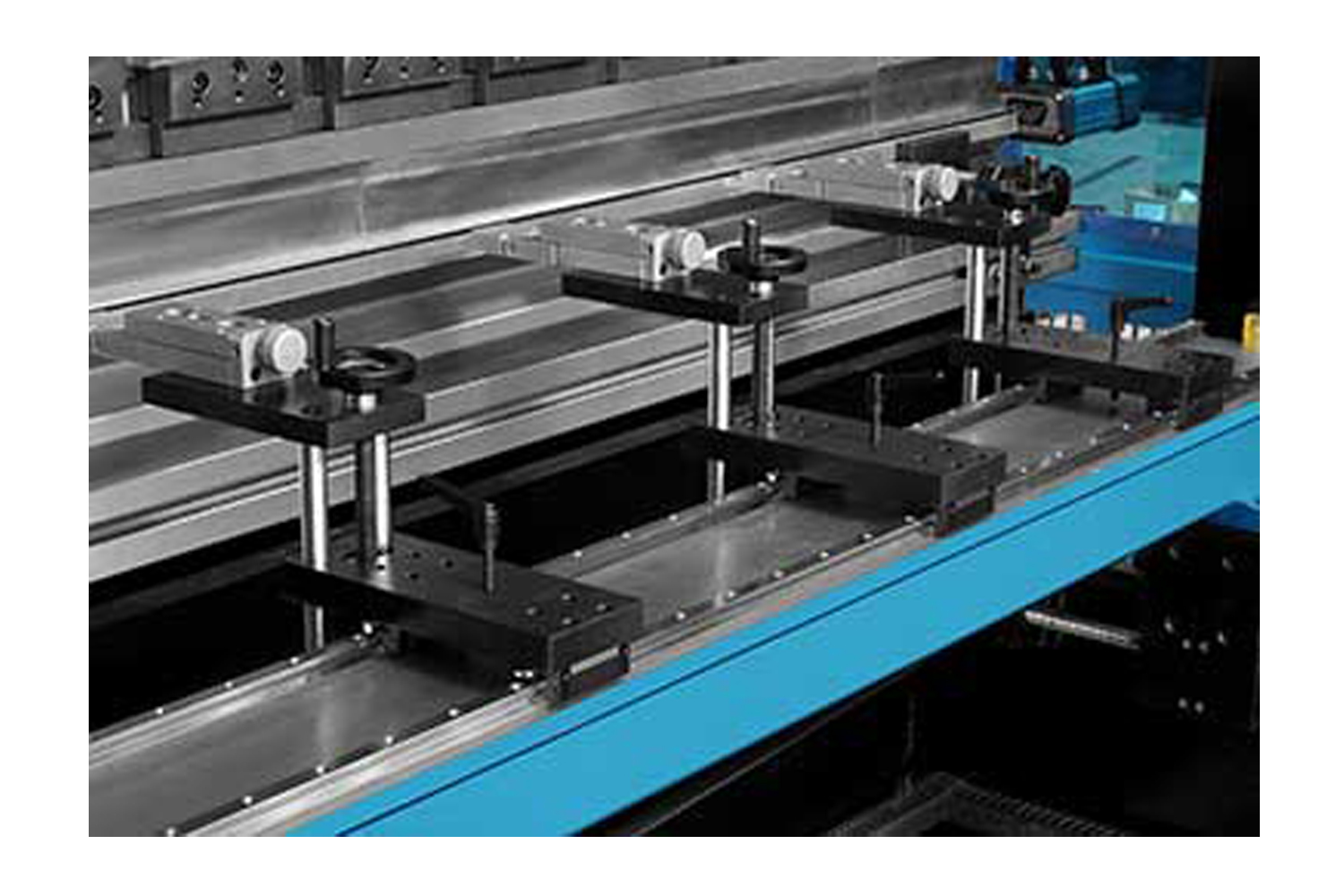

3+1 axis fingers stopper4+1 axis fingers stopper(optional)Adopt fully functional rear stopper mechanism, can choose to control more than one rear stopper shaft. The functional parts of the rear stopper, such as guide rail, lead screw, bearing and so on, are imported parts to ensure the accuracy of the rear stopper.

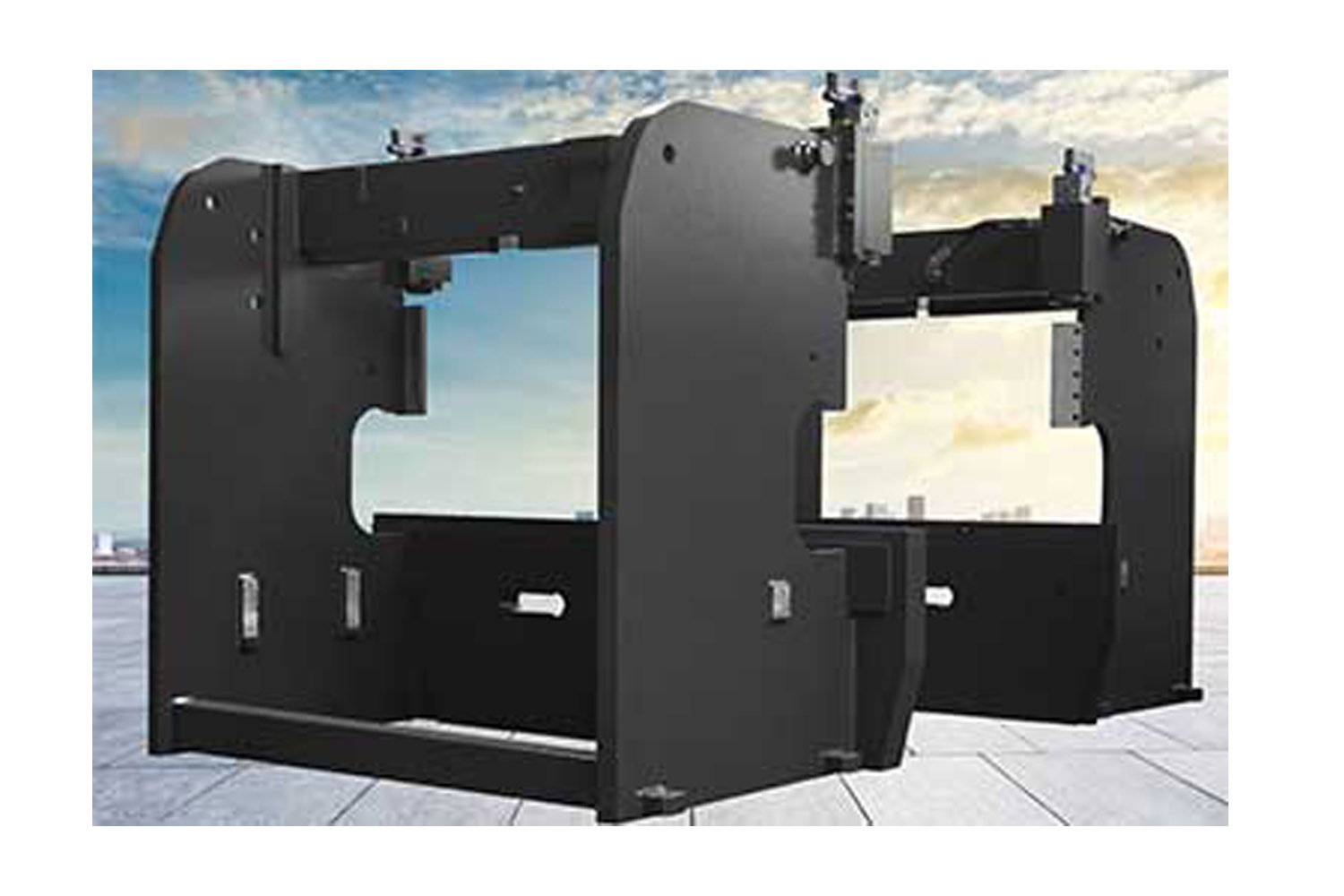

The body adopts split steel plate welding structure, which is tempered by large tempering equipment to eliminate the deformation caused by welding stress and processing stress and ensure the accuracy of the machine tool.

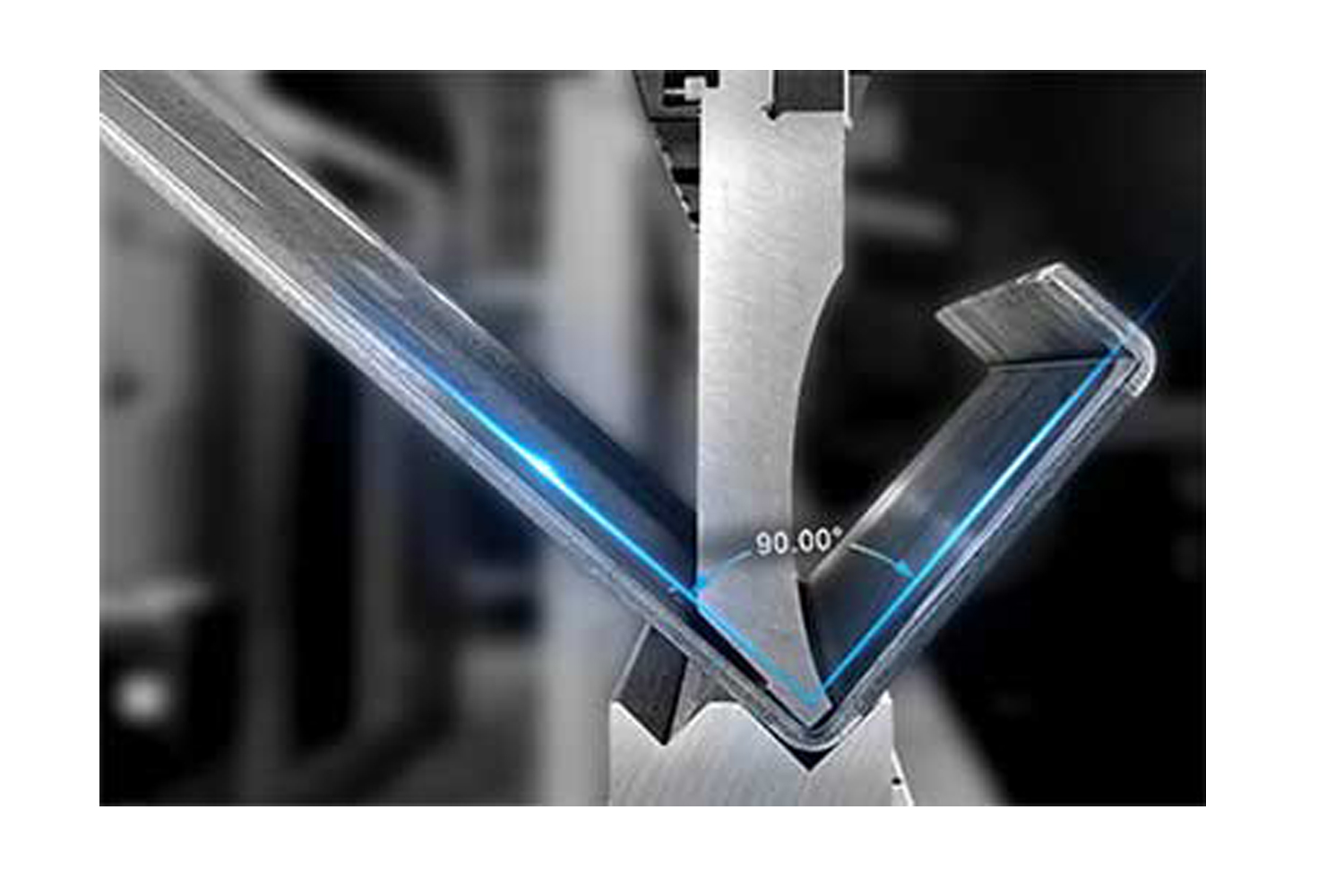

The upper die can be divided into sections, which can be assembled into a certain length according to the requirements of the workpiece to meet the processing needs of special workpiece. The upper die adopts safety ditch structure (European standard), and the lower die adopts combined structure to meet the needs of different workpiece.

Cnc press break
